1.2S Easy Operation Automatic Cable Tie Bundling Tool For coils of polyester monofilaments
SWT36150F specifications
| Model | SWT36150F |
| Bundle diameters | 3mm -31mm |
| Cable ties size | W3.6 * L150mm |
| Cable ties model | T36150 |
| Cable ties material | Nylon 66 |
| Binding forces | 2kgf, 3.5kgf, 5kgf, 6.5kgf, 8kgf |
| Operation speed | 1.2seconds for single cable tie |
| Voltage | AC220V, 50/60Hz |
| Pneumatic pressure | 5kg/cm2 |
Features/Advantages
1. Using loose nylon cable ties, T36150.
2. The binding forces are adjustable.
3. Cable tie gun is fixed in the support or in the worktop.
4. Touch the trigger, automatically wrap, tighten and cut off nylon ties. And the waste materials are collected into a box.
5. Auto detect jammed function: if cable tie jammed in the gun or the feeding hose, it can detect and clean the jammed cable tie, then restart.
6. The binding speed is 1.2S.
7. Voltage: AC220V, 50/60Hz
Similar autotools
| Model | SWT25100F | SWT25120F |
| Using nylon cable ties | 2.5 * 100mm | 2.5 * 120mm |
| Min bundle diameter | 2mm | 2mm |
| Max bundle diameter for wire | 18mm | 22mm |
| Max bundle diameter for tube | 16mm | 20mm |
| Operation speed | 0.8s | 0.9s |
| Voltage | AC220V | AC220V |
| Pneumatic pressure | 5kg/cm2 | 5kg/cm2 |
SWT36150F Packing details
Two wooden cases: the host machine: 1/wooden case;
the vibration bowl : 1/wooden case.
| Items | Packing size | G.W./kg | N.W./kg |
| The host machine | 85*81*95cm | 105 | 74 |
| The vibration bowl | 79*67*70cm | 90 | 70 |
Remark: packing sizes and weights are estimated. The fact data will be offered once machine is packed.
Service
1. Reply in 24hours after you inquiry.
2. 1 year warranty and tech support forever.
3. Certificates : CE,RoHS, ISO9001;2015
Application

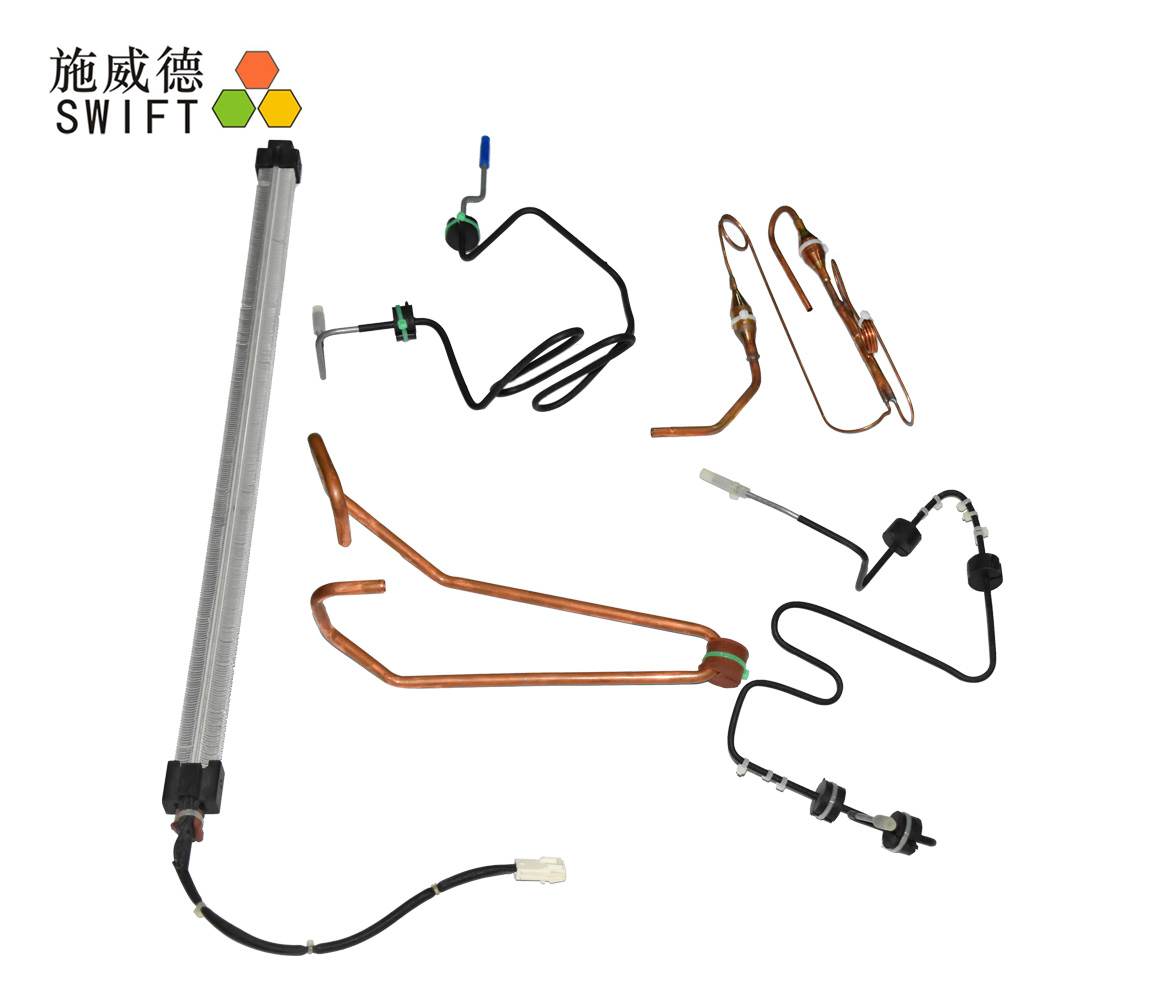

Christmas theme decoration, silicon tubes, wire harness
Company information
1. Our Prospect: To be the global leader in automatic nylon cable ties tools and cable ties
2. Our Mission: Provide top quality products. Provide customers with revolutionary improvement method.
3. Our Core Values: Innovation, Integrity, Pragmatic,Win-Win
4. Our Management Policy: Customer Supreme, Credit First,Scientific innovation,Creating top-quality products.
FAQ
1. Which countries have bought these automatic cable tie tools from your company?
Italy, UK, Spain, Brazil, Turkey, Poland, Germany and so on.
2. Where is your factory?
In Shenzhen, China.
3. How should I deal with the machine has anything wrong?
Pls send some videos to us and we would suggest you how to do.
