Hands Free Automatically Bundle 0.9S Automatic Cable Tie Machine

Name: Hands Free Automatically Bundle 09S Automatic Cable Tie Machine
Brand: SWIFT
Price: 1 USD

Brand Name : SWIFT

Model Number : SWT36100F

Certification : CE

Place of Origin : China

MOQ : 1pcs

Price : Negotiation

Payment Terms : T/T

Supply Ability : 100pcs/month

Delivery Time : 12 - 15days

Packaging Details : Wooden cases

Name : Automatic cable tie packing machine

Model : SWT36100F

Cable ties sizes : W3.6 * L100mm

Cable ties model : T36100

Binding diameter : 2mm - 18mm

Rapidly binding speed : 0.9second

Voltage : AC220V,50/60Hz, different plugs

Certificate : CE, RoHS

Contact Now

Hands Free Automatic Cable Tie Machine For Self Locking Plastic Ties Quickly 0.9S

Once treading the foot pedal, automatically feeding and bundling nylon cable ties.

Product features

1. With foot pedal. Once treading the pedal, automatically locking nylon cable ties, cutting off and collecting the waste material into a box.Hands free!

2. Put nylon cable ties(200pcs-300pcs per time) into vibration bowl, they would be automatically loaded and feed into the gun.

3. Turning a knob to adjuste binding forces. The max number is ”4” and it means 8kg.

4. The locking/cutting/collecting speed is 0.9S. One machine can save 2 workers.

5. The max bundle diameter is 22mm.

6. Voltage: AC220V, 50/60Hz, 1phase; Pneumatic pressure: 5kg/cm²

Technique data

Model	SWT36100F
Voltage	AC220V, 50/60Hz
Pneumatic pressure	5kg/cm²
Packing speed	0.9S per cable tie
Packing object diameter	2mm – 18mm
Packing forces	Adjustable
Packed nylon cable ties sizes	W3.6 * L100mm

Packing machine introduction

1. Vibration bowl: Pls connect with the host machine. Turn on, choose 4 or 5.

2. The FIXED cable tie gun: treading the pedal, starting to lock, tighten and cut off cable ties.

3. The feeding tube: transfer cable ties into cable tie gun

Packing data

Item	Packing size	N.W./kg	G.W./kg
Vibration bowl/wooden case	675563cm	55kg	79kg
Host machine/wooden case	747083cm	64KG	96kg

Similar automatic cable tie machine

Model	SWT25100F
Cable ties spec	W2.5 * L100mm
Bundle speed	0.8S
Bundle diameters	2mm - 18mm
Voltage	AC220V, 50/60Hz
Pneumatic pressure	5kg/cm²

Hands Free Automatically Bundle 0.9S Automatic Cable Tie Machine

FAQ

1. Why cable ties are jammed in vibration bowl?

Put too much cable ties in here. Pls put 200-300pcs per time.

2. What certificates do you have?

CE, RoHS and ISO9001:2015.

Product Tags:

ac 220v cable tie tightening tool

50/60Hz nylon cable tie machine

Buy cheap Hands Free Automatically Bundle 0.9S Automatic Cable Tie Machine product

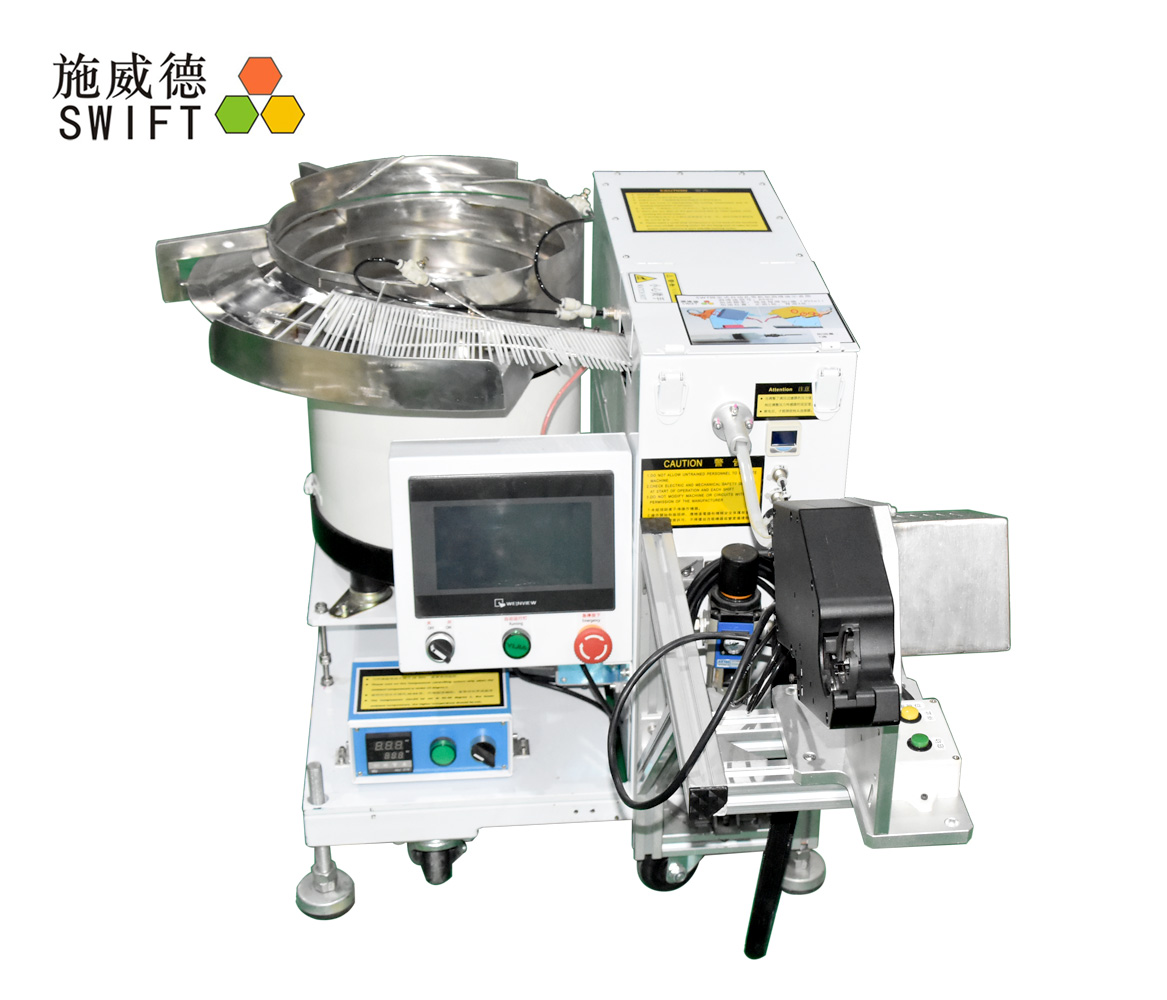

Hands Free Automatically Bundle 0.9S Automatic Cable Tie Machine Images
