Automatic cable tie machine for optimizing wire harness bundle
To replace hand-bundle! To improve the productivity!
Basic applications
Be suitable for wire harness bundle or some soft tubes, such as wire harness in home appliance, wire harness in the board. The bundle diameters are from 2mm to 18mm. It can automatically adapt different diameters and tie nylon cable ties.
Be popular in home appliances, wire harness assembly factories. One machine uses one kind of nylon cable ties. It is easy to move and handheld cable tie gun. Operator could bundle any position in wire harness. It reduces the process of bundle and improves the bundle efficiency.
Scope of applications
Applicable cable tie: loose nylon cable ties, T25100, W2.5 * L100mm.
Applicable products: To tie nylon zip ties on wire harness, soft tubes, bags etc. ; the bundle diameters: ø2mm - ø18mm.
Applied industry: wire harness, white goods/home appliance, food, medical industry.
Case: Ovens’ wire harness on site assembly, medical silicone tubes and connectors fixed, food bags sealed etc.
Technical data
| Item | Data |
| Automatic cable tie machine model | SWT25100H |
| Bundle speed | 0.7S per cable tie(Related to product size) |
| Applicable cable ties model | T25100 |
| Applicable length/width/thickness of cable ties: | 100mm/2.5mm/1.1mm |
| Applicable wire harness/tubes diameters | ø2mm - ø18mm for wire harness; ø2mm - ø16mm for tubes |
| Voltage | AC220, 50/60Hz |
| Power | 1,000W |
| Pneumatic pressure | 5kg/cm² |
| Host size | L670 * W660 * H660mm |
| Handheld cable tie gun size | L250*W102*T64mm |
| Handheld cable tie gun weight | 0.86kg/pcs |
Working process
Working principle: loading and distributing nylon cable ties, auto tying.
Operation process: put nylon zip ties into vibration bowl – load and distribute – aim at wire harness/tubes or other products – pull the trigger and finish bundle.
Nylon cable ties requirements
1. Main size: W2.5*L100*T1.1mm;
2. Head size: L4.8*W4.8*H3.8mm;
3. Material: nylon PA66
4. Tensile strength: 8kg
5. Shape: straight and strong, no burr/flash
When you want to use automatic cable tie machine in production line, pls send some product samples to us to test or tell us the product size. We would give you a test video.
Features of automatic cable tie tools
1. Automation: operator pulls the trigger, cable tie gun would automatically finish wrapping, pulling and tightening, cutting cable ties and collecting the waste.
2. The bundle speed is fast. The bundle efficiency is much higher than by-hand.
Automatic cable tie gun: 2400pcs-3000pcs/hour
Hand: 400pcs-600pcs/hour
It depends on the experienced operator.
3. PLC control and touch screen: easy to manage the parameters.
4. The tightening forces are adjustable.
5. It significantly reduces the labor intensity, and the original production employees can also complete tasks more easily and efficiently.
6. Could be applied to full automation line with a robot.
7. Pneumatic pressure 5kg/cm²
Other cable tie guns
| Model | SWT25080H | SWT25120H |
| Applicable cable ties model | T25080 | T25120 |
| Cable ties sizes | W2.5*L80*T1.1mm | W2.5*L120*T1.1mm |
| Bundle diameters | ø2mm - ø14mm | ø2mm – ø22mm |
| Bundle speed | 0.7S | 0.8S |
| Voltage | AC220, 50/60Hz |
| Pneumatic pressure | 5kg/cm² |

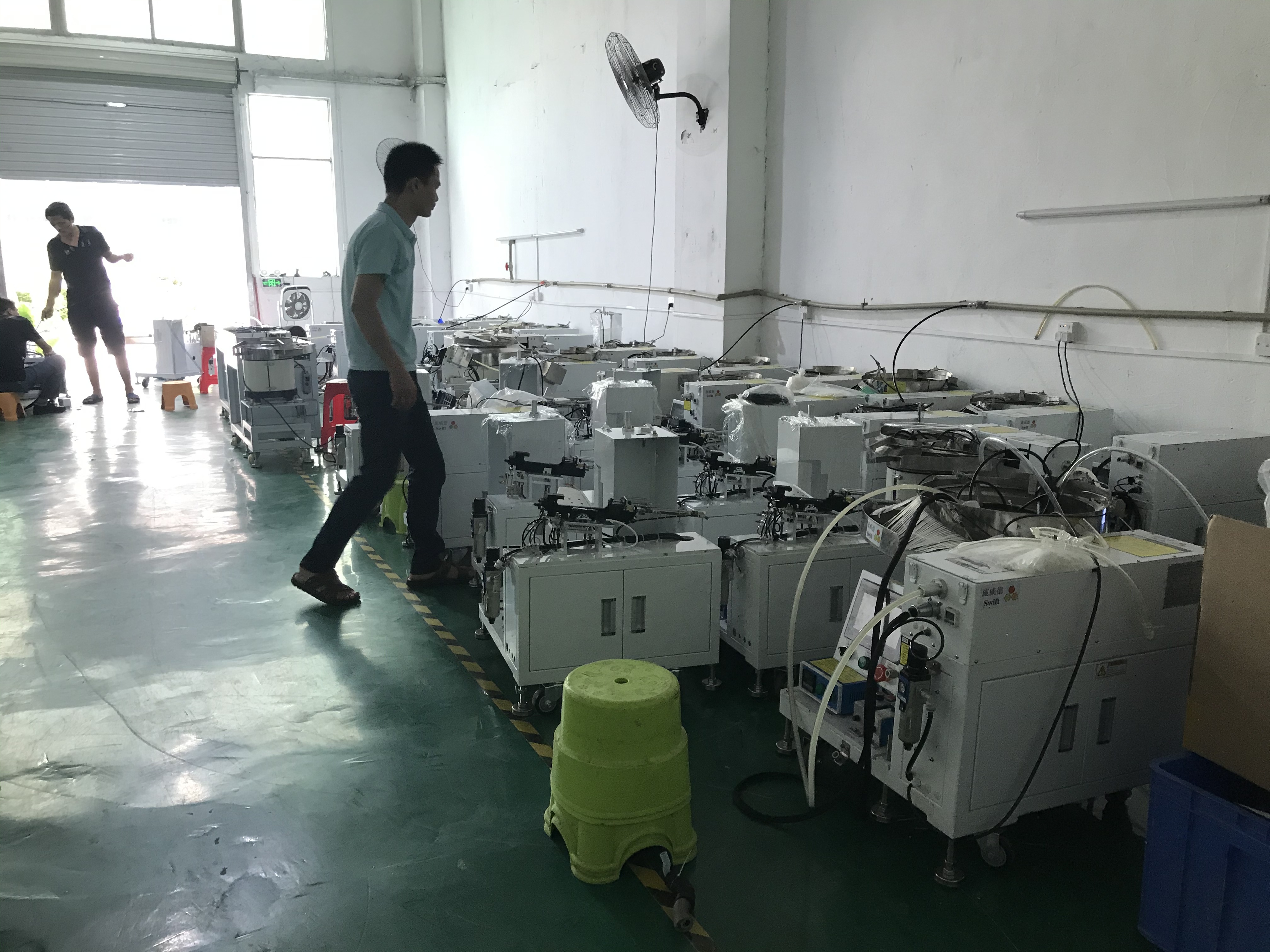

The factory
