Christmas Theme Ropelight Bundle Fast 1.0S SWT36150H Automatic Cable Tie Tool Gun For 150mm Nylon Ties

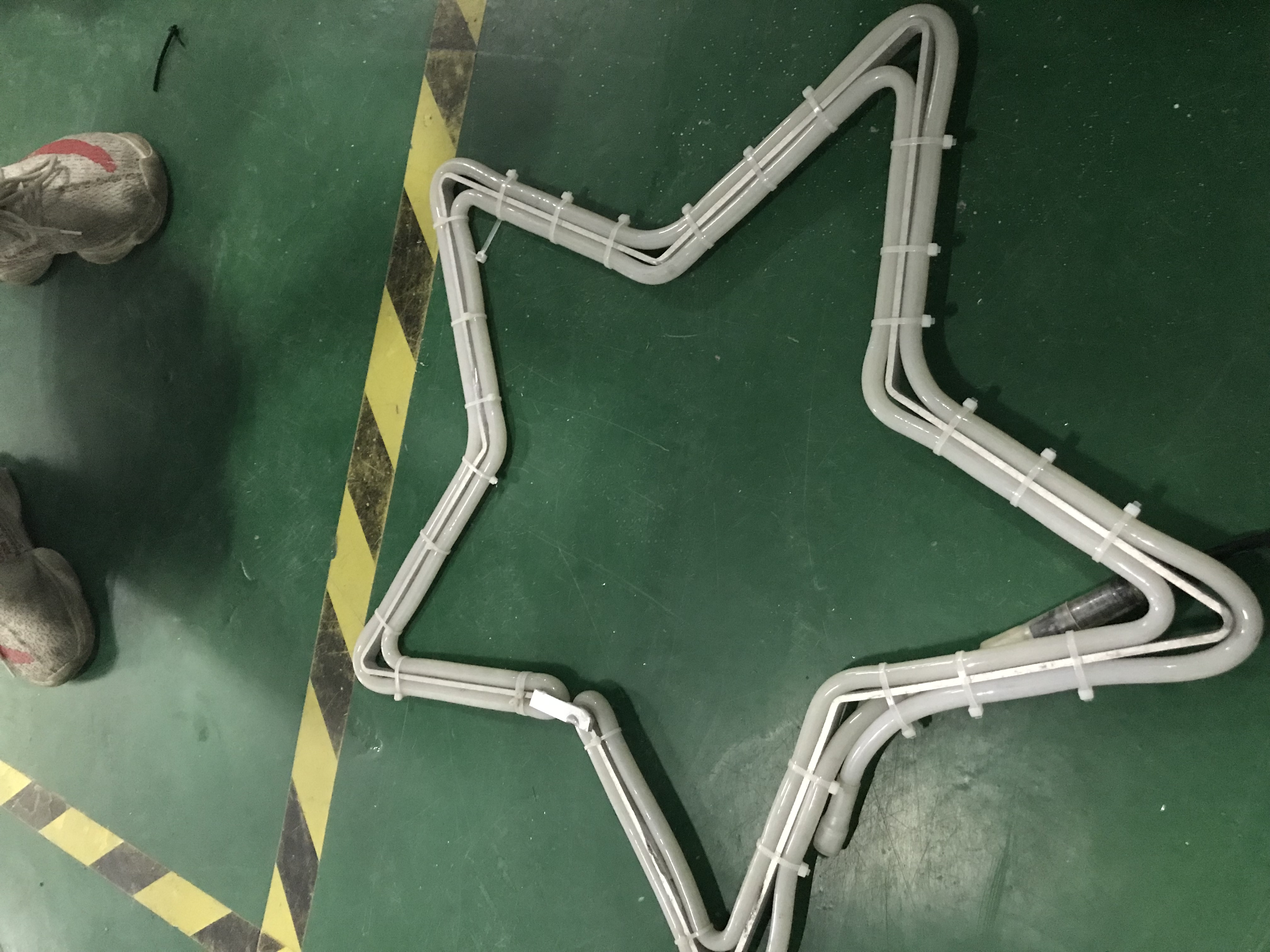

Christmas theme would use nylon cable ties to fix some rope lights and the frames. Using automatic cable tie tool gun saves time. It could wrap, tighten and cut off cable ties in 1.0S. It is faster than by hand.
SWT36150H specifications
| Model | SWT36150H |
| Bundle diameters | 3mm -31mm |
| Cable ties size | W3.6 * L150mm |
| Cable ties model | T36150 |
| Cable ties material | Nylon 66 |
| Binding forces | 2kgf, 3.5kgf, 5kgf, 6.5kgf, 8kgf |
| Operation speed | 1.0seconds for single cable tie |
| Voltage | AC220V, 50/60Hz |
| Pneumatic pressure | 5kg/cm2 |
Features/Advantages
1. Using loose nylon cable ties, T36150.
2. The binding forces are adjustable.
3. With a handheld cable tie gun.
4. Touch the trigger, automatically wrap, tighten and cut off nylon ties. And the waste materials are collected into a box.
5. Auto detect jammed function: if cable tie jammed in the gun or the feeding hose, it can detect and clean the jammed cable tie, then restart.
6. Handheld cable tie gun could be as desktop type if add a support.
7. The binding speed is 1.0S.
8. Voltage: AC220V, 50/60Hz
Important details
1. The max binding diameter is 31mm. When rope lights and Al frame are tied together by manual, you would use longer cable ties.
If you use automatic cable tie tool, cable ties can be shorter. We usually suggest clients shipping a sample to us to test.
2. SWT36150H uses loose cable ties. Operator can put nylon cable ties at random.
It is better if you can put them toward one direction. That is because it is easy for the vibration bowl to sort them and save time.
Packing details
Two wooden cases: the host machine will be packed in a wooden case; the vibration bowl will be packed in a wooden case.
| Items | Packing size | G.W./kg | N.W./kg |
| The host machine | 85*81*95cm | 105 | 74 |
| The vibration bowl | 79*67*70cm | 90 | 70 |
Remark: packing sizes and weights are estimated. The fact data will be offered once machine is packed.
Service
1. Reply in 24hours after you inquiry.
2. 1 year warranty and tech support forever.
3. Certificates : CE,RoHS, ISO9001;2015
Application
Christmas theme decoration
FAQ
| Questions | Answers |
| 1. Which countries have bought these automatic cable tie tools from your company? | Italy, United State, UK, Spain, Brazil, Turkey, Poland, Germany and so on. |
| 2. Have you attended fairs in Euro? | We usually attend the fair in Munich. We were there in 2017 and 2019. |
| 3. Where is your factory? | In Shenzhen, China. |
| 4. How should I deal with the machine has anything wrong? | Pls send some videos to us and we would suggest you how to do. |
Pls see the video.
