1S Automatic Cable Tie Gun For Stator Coil In Vacumm Cleaner

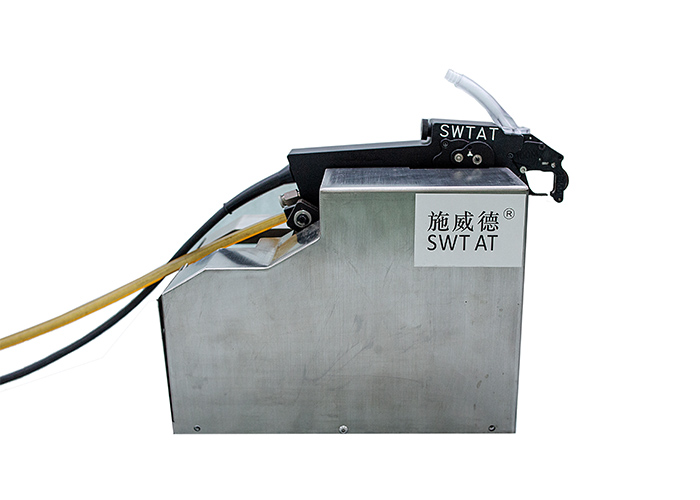

Automatic cable tie tool for motor coil is manufactured by Swift automation technology company. The cable tie gun is used to bundle some items with small room to go through nylon tie wraps.
How does the machine work?
The plastic ties sorted by the vibration bowl would be transferred into the cable tie gun. When to tread the pedal, auto cable tie gun automatically binds motor coils with nylon zip ties.
Automatic cable tie gun specifications
| Model | SWT25100M |
| Cable tie size | W2.5 * L100mm( different colors available) |
| Min banding Dia. | ø9 mm |
| Max banding dia. for wire | ø13 mm |
| Bundle speed | 1S /pcs cable tie |
| Electrical power | Host: AC 220V 50/60 Hz |
| Tool: DC 24V(automatic switching) |
| Pneumatic pressure | 5 Kg/ cm² |
| Power | 1kw |
| Weight | Host:146 kg ( With 4 wheels) |
| Gun: 6kg |
| Size | Host: L69 * 67 * 67cm |
| Gun: L33 * W28 * H18cm |
| Certificate | CE, RoHS |
Automatic cable tie gun features
1. The whole operation takes only 1s, one machine can save 1-2 operators. Different waste material collecting methods for choice.
2. Tread the pedal, automatically Wrapping, Perforating, Pulling & Tightening zip ties, Cutting them off and collecting waste material into a tank.
3. PLC + Touch Panel controlling, easily to manage.
4. Special automatic cable tie gun
It is used to bundle items with small room to go through nylon cable ties
Operations
1. Take 200 - 300pcs bulk cable ties into the vibration at random.
2. If the binding force is small, you can turn the knob to adjust it.
SWIFT automatic cable tie machine advantages
1. Automatic detect the failure: it means the machine would stop immediately if there is any malfunction, and automatic deal with the failed cable tie, and automatic restart the machine.
2.There has the function of detecting cable tie jam, if there is any cable tie jam in the Tool or in the hose, the machine would stop running and automatic clean the jammed cable tie, and then restart automatically.
Related products
| Model | SWT25080M | SWT36120M |
| Cable tie size | W2.5 * 80mm | W3.6 * L120mm |
| Min banding Dia. | ø5 mm | ø11 mm |
| Max banding dia. for wire | ø10mm | ø15 mm |
| Operation speed | 0.9s | 1.2s |
