0.9S SWIFT Automatic Cable Tie Gun For Small Space Wire Cable / plastic tubes
The automatic cable tie gun can bundle the items which just has small room for nylon cable ties to go through.
Automatic cable tie machine specifications
| Name | Automatic cable tie machine |
| Model | SWT25100M |
| Cable ties material | nylon 66 |
| Bundle items' dia. | 9mm - 13mm |
| Using cable ties | W2.5 * L100mm |
| Bundle speed | 1.0S |
| Bundle forces | Adjustable 2-8kgf |
| Voltage | AC220V, 50/60Hz |
Automatic cable tie gun features
1. The cable tie gun SWT25100M is used to bind items have small space for nylon cable ties to go through.
2. Using loose nylon cable ties and the size is W2.5 * L100mm.
3. The bundle speed is 1.0S and is faster than by hand.
4. AC220V, 50/60Hz. It is electric machine.
Applications

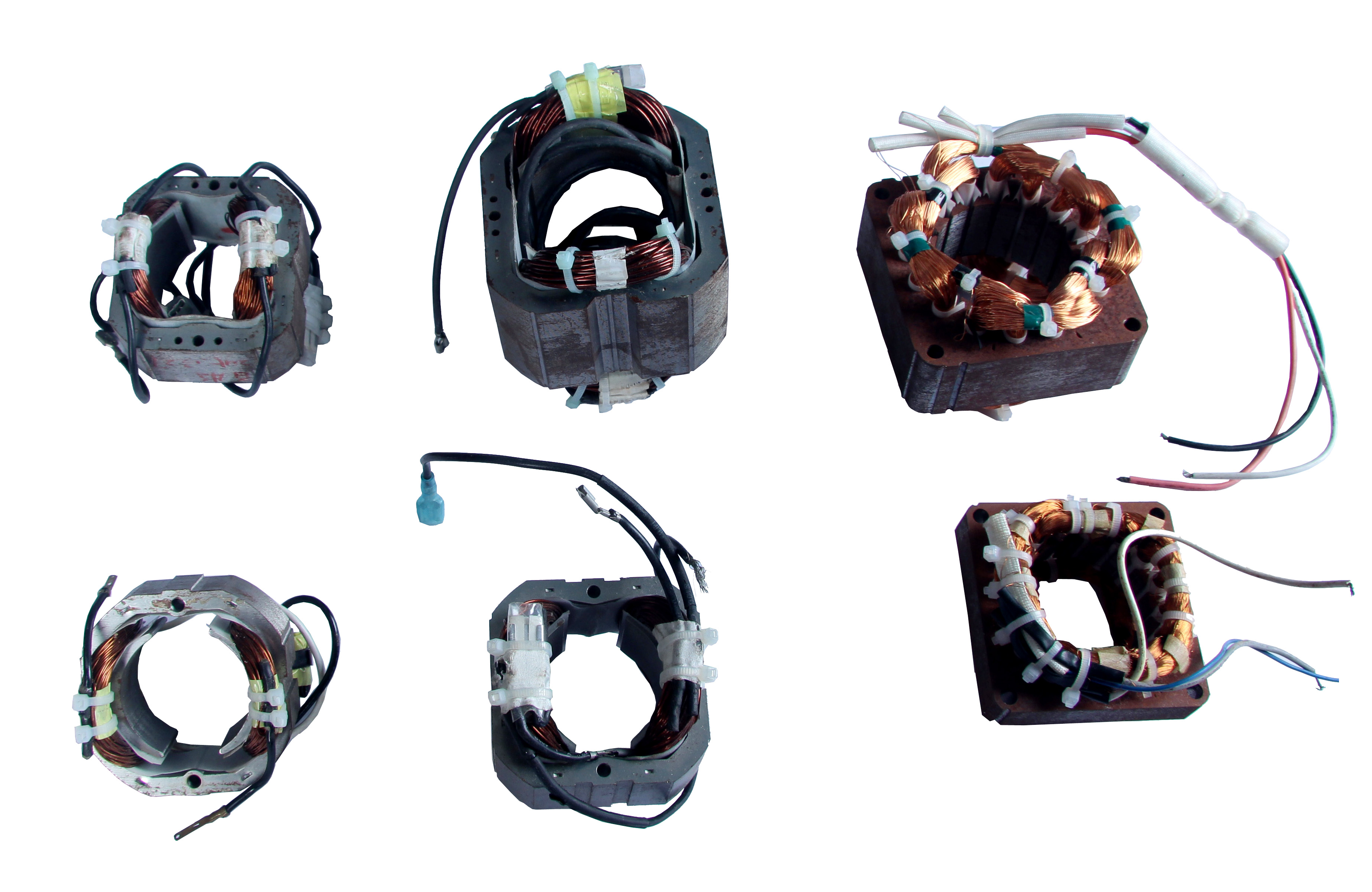

Different sizes stator coils
The things that you must know before buying the cable tie gun
1. Be sure cable ties size and the items bundle diameter.
2. There are handheld cable tie gun and fixed cable tie tool. Pls choose which one is suitable or ask our sales team for suggestions.
FAQ
1. Is it tight? Can I adjust the force?
Yes, it is very tight. There are 4 binding forces to choose. You could adjust them by turning a knob.
2. Do I need to do the maintenance?
Yes, you do and pls maintain the cable tie gun(Inject lubricating oil every two weeks). It is easy and you can do the job in your factory.
3. Do you have English manual or the guiding videos?
Yes, we have and would help you how to use SWIFT cable tie machine.
