Stronger Tension Force Automatic Cable Tying System For Bundling Small Goods
Automatic cable tying system SWT25080M is a machine that has 4wheels to move. And cable tie gun is a part of it. The gun could be fixed in the bench to operate.
Features
1. Put 200pcs cable ties on the edge of the vibration bowl. When vibration bowl working, bulk cable ties would be re-rank tidily.
2. When operator treads foot pedal, the machine would start to thread, pull and tighten, cut off and collect the waste material into a tank.
3. The tension force is stronger than the handheld gun and could be adjusted.
4. PLC control system and touch screen, multi-languages display.
5. The whole operation takes 0.8S. It is suitable for bundling large number of motor coils or small objects.
6. It could count the quantity of cable ties bundled successfully.
7. With temperature control system. In the cold winter, you could set the temperature 40℃ to protect the cable tie toughness.
Base data
| Name | SWT25080M |
| Description | Cable tie tool for automatic bundling, without threading and tightening by hands. |

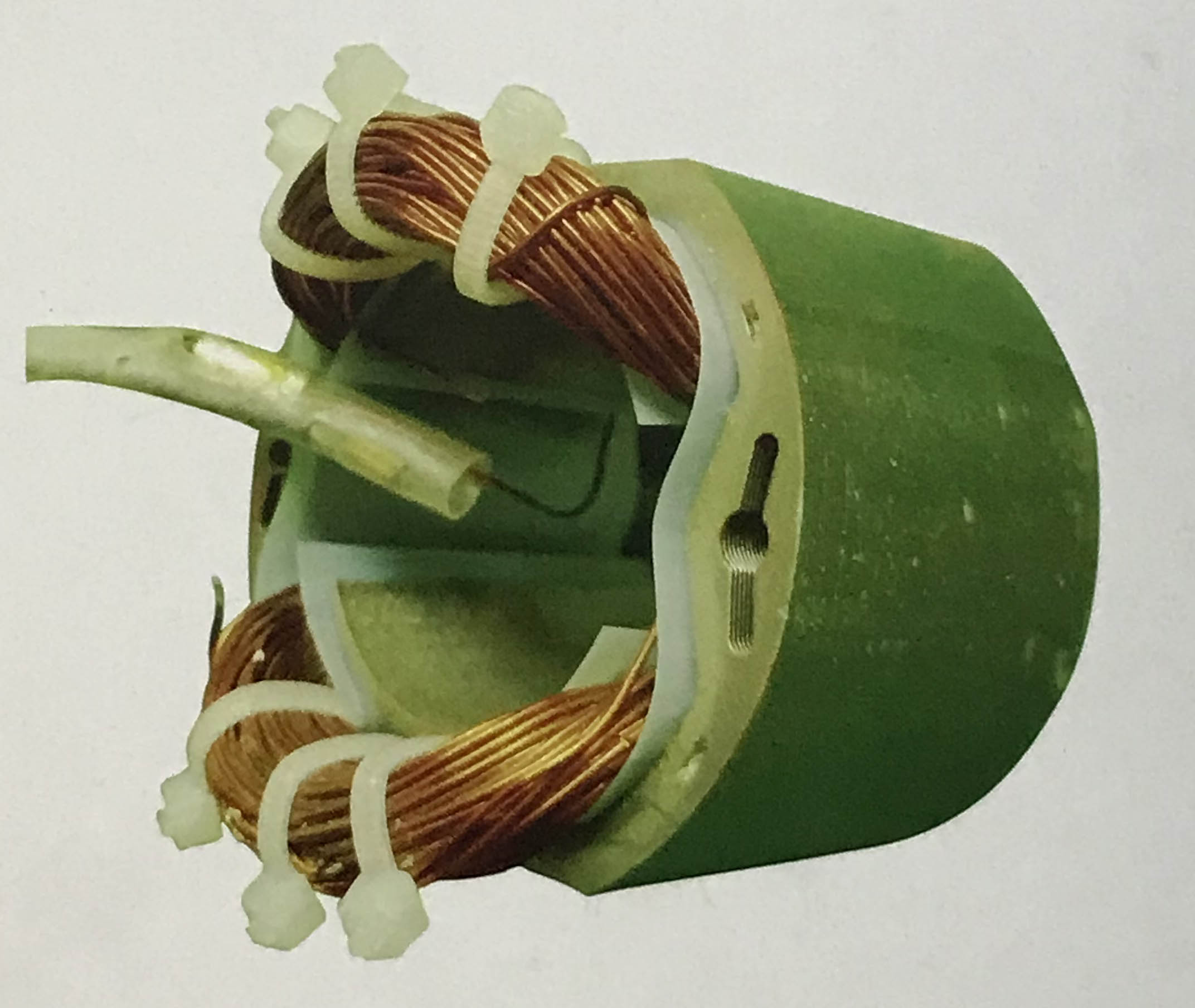

| Features and advantages | 1. Handle bulk cable ties, T25080 2. Automatic banding motor stators or others 3. Automatic detection of if cable ties are bundled successful. It could deal with the failed ones. 4. Automatic detection of if cable ties are jammed. It could clean the jammed ones. 5. The banding forces could be adjusted. 6. It is better to bundle motor stator coil. |
| Bench mount kit | Including a gun head, a frame, a foot pedal(Standard) |
| Overhead suspender | Unnecessary |
| Cable ties | T25080 cable ties |
| Material | Nylon 66 U4820L certified by UL,RoHS and CE |
| Width | 2.5mm |
| Length | 80mm |
| Tensile strength | 8kg |
| Quantity/bag | 1,000pcs |
| Usage/per time in vibration bowl | 200pcs – 300pcs is better |
| Bundling Max Dia. for wire | Ø10.0mm |
| Bundling Max Dia. | Ø5.0mm |
| Bundling speed | 0.9S/cable tie |
| Operation | Electrical |
| Tool head/pcs | L331 * W282 * T189mm; N.W.: 6kg |
| Tool head power | DC48V |
| Power supply | AC110V/AC220V, 50/60Hz; plugs available |
| Pneumatic pressure | 5kg/cm² |
| Max power | 1,000W |
| Tension force | Adjustable |
Packing details
| SWT25080M Packing Details |
| Export wooden case | 2pcs |
| The host machine / wooden case | G.W./kg | 76kg |
| Packing Size/cm | L83 * W81 * H84cm |
| The vibration bowl / wooden case | G.W./kg | 65 |
| Packing Size/cm | L74 * W64 * H87cm |
| Total G.W. | 141kg( estimated) |
FAQ
1. How does the machine work?
There are three main parts for the machine, the vibration bowl, the host machine and the tool head. The bowl would rank loose cable ties and they would be transferred to the tool head through a feeding hose. It would start to bundle objects with cable ties once push the foot pedal.
2. Which kind of cable ties does the machine SWT25080M use?
Bulk cable ties T25080 whose size is W2.5 * L100mm.
3. Can use other brand cable ties?
Yes, it is no problem to use other brand cable ties. Please check if cable ties quality is as good as SWIFT T25080. We suggest you using T25080 cable ties.
